Product Summary

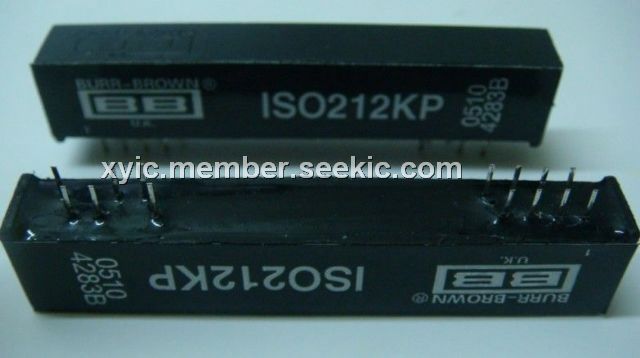

The ISO212KP signal isolation amplifier is a member of a series of low-cost isolation products from Burr-Brown. The low-profile SIL plastic package allows PCB spacings of 0.5" to be achieved, and the small footprint results in efficient use of board space. The applications of the ISO212KP are Transducer Channel Isolator for Thermocouples, RTDs, Pressure Bridges, Flow Meters, 4mA TO 20mA loop isolation, motor and scr control, ground loop elimination, analytical measurements, power plant monitoring, data acquisition/test equipment, isolation multiplexed systems with channel to channel isolation.
Parametrics
ISO212KP absolute maximum ratings: (1)Supply Voltage Without Damage:18V; (2)Continuous Isolation Voltage Across Barrier: 1500Vrms; (3)Storage Temperature Range:–25°C to 100°C; (4)Lead Temperature (soldering, 10s):+300°C; (5)Amplifier Output Short-Circuit Duration:Continuous to Common; (6)Output Voltage Hi or Lo to Com 2:±VCC /2.
Features
ISO212KP features: (1)12-bit accuracy; (2)2.5mA (typ) quiescent current; (3)low profile (less than 0.5" high); (4)small footprint; (5)external power capability(±8V at 5mA); (6)“master/slaves” synchronization capability; (7)input offset adjustment; (8)low power (53mW); (9)single 10V to 15V supply operation.
Diagrams
 |
 ISO213 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
