Product Summary

The Z84C0006PEG CPU is a fourth-generation enhanced microprocessor with exceptional compulational power. It offers higher system throughput and more efficient memory utilization than comparable second- and third-generation microprocessors. The internal registers of Z84C0006PEG contain 208 bits of read/write memory that are accessible to the programmer.

Parametrics

Z84C0006PEG (1)voltage on VCC with respect to VSS: -0.3 V to +7 V; (2)voltage on all inputs with respect to VSS: -0.3 V to VCC +0.3 V; (3)operating ambient temperature: ordering information; (4)storage temperature: -65 to +150℃.

Features

Z84C0006PEG features: (1)NMOS version for low cost high performance solutions, CMOS version for high performances low power designs; (2)NMOS 6.17 MHZ; (3)6 MHz version can be operated at 6.144 MHz clock; (4)two sixteen-bit index registers; (5)on-chip dynamic memory refresh counter.

Diagrams

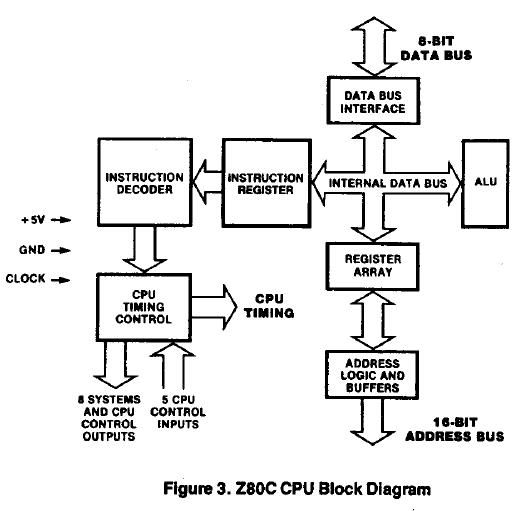

Z84C0006PEG circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
Z84C0006PEG
Z84C0006PEG
ZiLOG
Microprocessors (MPU) 6MHz Z80 CMOS CPU XT
Data Sheet
0-1: $2.78
1-25: $2.39
25-100: $2.06
