Product Summary

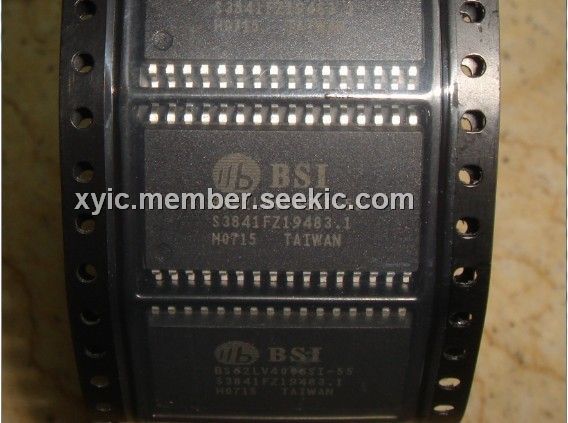

The BS62LV4006SI-55 is a high performance, very low power CMOS Static Random Access Memory organized as 524,288 by 8 bits and operates form a wide range of 2.4V to 5.5V supply voltage. The BS62LV4006SI-55 has an automatic power down feature, reducing the power consumption significantly when chip is deselected.

Parametrics

BS62LV4006SI-55 absolute maximum ratings: (1)Terminal Voltage with Respect to GND:-0.5 to 7.0V ; (2)Temperature Under Bias:-40 to +125℃; (3)Storage Temperature:-60 to +150℃; (4)Power Dissipation:1.0W ; (5)DC Output Current:20mA.

Features

BS62LV4006SI-55 features: (1)Automatic power down when chip is deselected ; (2)Easy expansion with CE and OE options ; (3)Three state outputs and TTL compatible ; (4)Fully static operation ; (5)Data retention supply voltage as low as 1.5V.

Diagrams

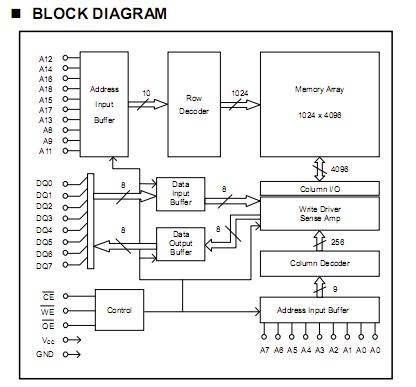

BS62LV4006SI-55 block diagram
