Product Summary
The TMP68301 is a single-chip, integrated controller utilizing the CMOS 68HC000 microprocessor as the core processor, Standard peripherals circuits required by the 68HC000 are built into the TMP68301. Built-in circuits include 3 series interfaces, a parallel interface, 3 timers, an interrupt controller and an address decoder.
Features
Features: (1)68HC000 core based microprocessor; (2)3 asnchronous serial ports with baud rate generators with optional modem control; (3)16 bit parallerl interface with optional centronics interface port; (4)3 timer channels, 16 bits each with an 8 bit prescaler; (5)built-in intertupt controller, 3 external and 7 internal chnnels with auto interrupt vector generation; (6)sophisticated address decoder, includes relocatable chip select generate for internal registers and externals chip selects; (7)automatic DTACK generation with 0 to 7 wait states and programmable berr generation.

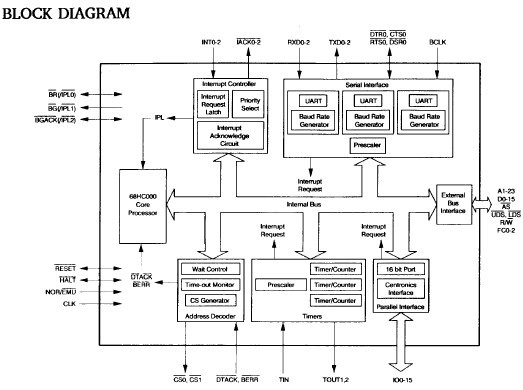

Diagrams
 |
