Product Summary

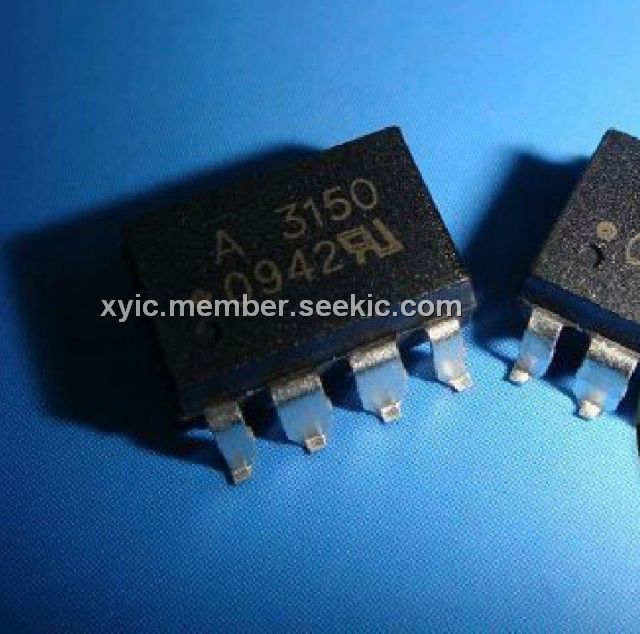

The HCPL3150 is a 0.5 Amp Output Current IGBT. The HCPL3150 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 1200 V/50 A. For IGBTs with higher ratings, the HCPL3150 can be used to drive a discrete power stage which drives the IGBT gate. The applications of the HCPL3150 include Isolated IGBT/MOSFET Gate Drive, AC and Brushless DC Motor Drives, Industrial Inverters and Switch Mode Power Supplies (SMPS).
Parametrics
HCPL3150 absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 100℃; (3)Average Input Current, IF(AVG): 25 mA; (4)Peak Transient Input Current, IF(TRAN): 1.0 A; (5)Reverse Input Voltage, VR: 5 Volts; (6)High Peak Output Current, IOH(PEAK): 0.6 A; (7)Low Peak Output Current, IOL(PEAK): 0.6 A; (8)Supply Voltage ,(VCC - VEE): 0 to 35 Volts; (9)Output Voltage, VO(PEAK): 0to VCC Volts; (10)Output Power Dissipation, PO: 250 mW; (11)Total Power Dissipation, PT: 295 mW; (12)Lead Solder Temperature: 260℃.
Features
HCPL3150 features: (1)0.5 A Minimum Peak Output Current; (2)15 kV/μs Minimum Common Mode Rejection (CMR) at VCM = 1500 V; (3)1.0 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive; (4)ICC = 5 mA Maximum Supply Current; (5)Under Voltage Lock-Out Protection (UVLO) with Hysteresis; (6)Wide Operating VCC Range: 15 to 30 Volts; (7)500 ns Maximum Switching Speeds; (8)Industrial Temperature Range: -40 to 100℃; (9)Safety and Regulatory Approval: UL Recognized.
