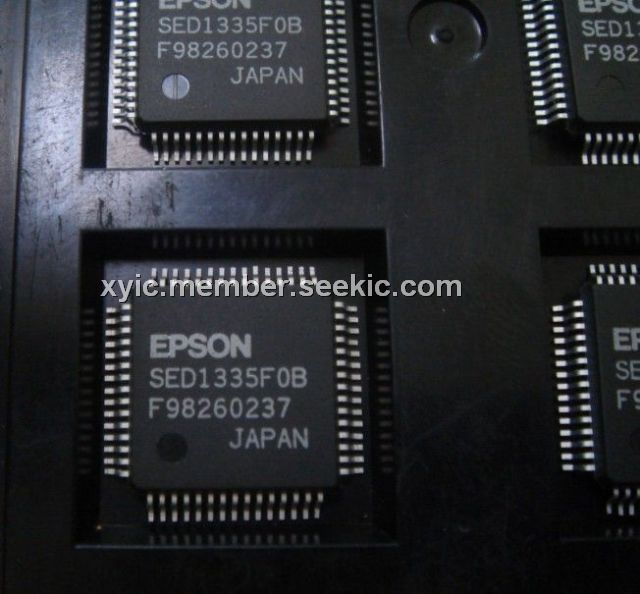

SED1335FOB

controller IC, 1/256-duty LCD drive, 0.05 mA standby current, QFP6-60 pin

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~7.50

PartNumber:: SED1335FOB

Brand:: Epson Company - EPSON | Pack: QFP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Steven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-23

From Other Seller

Part Number:SED1335FOB
US $7.00 - 7.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

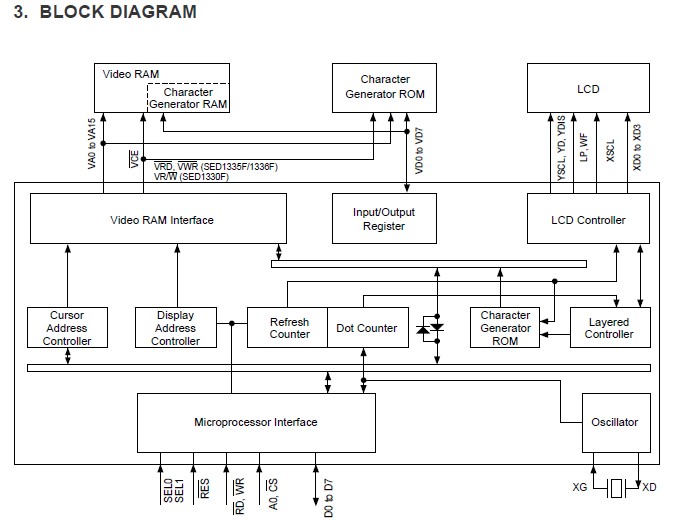

The SED1335FOB is a controller IC that can display text and graphics on LCD panel. It can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The SED1335FOB stores text, character codes and bitmapped graphics data in external frame buffer memory. Display controller functions include transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels and generating timing signals for the buffer memory, LCD panel. The SED1335FOB has an internal character generator with 160, 5 × 7 pixel characters in internal mask ROM.

Parametrics

Absolute maximum ratings: (1)VDD, Supply voltage range: –0.3 to 7.0 v; (2)VIN, Input voltage range: –0.3 to VDD + 0.3 v; (3)PD, Power dissipation: 300 mW ; (4)Topr, Operating temperature range: –20 to 75 ℃ ; (5)Tstg, Storage temperature range: -60to+150 ℃ ; (6)Tsolder, Soldering temperature (10 seconds)See note 1.: 260 ℃.

Features

Features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)Up to 640 256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)1/2-duty to 1/256-duty LCD drive; (7)Up to 640 256 pixel LCD panel display resolution memory; (8)160, 5 7 pixel characters in internal mask-programmed character generator ROM; (9)Up to 64, 8 16 pixel characters in external character generator RAM; (10)Up to 256, 8 16 pixel characters in external character generator ROM; (11)6800 and 8080 family microprocessor interfaces; (12)Low power consumption.5 mA operating current (VDD = 3.5V), 0.05 mA standby current; (13)Package: QFP6-60 pin.
