Product Summary

The HD64F3664FPV is a 16-Bit Single-Chip Microcomputer. It has an H8/300H CPU with an internal 32-bit architecture that is upward-compatible with the H8/300CPU, and supports only normal mode, which has a 64-kbyte address space.

Parametrics

HD64F3664FPV absolute maximum ratings: (1)Power supply voltage:–0.3V to +7.0V; (2)Analog power supply voltage:–0.3V to +7.0V; (3)Input voltage:Ports other than Port B and X1:–0.3V to VCC+0.3V, Port B:–0.3V to AVCC +0.3V, X1:–0.3V to 4.3V; (4)Operating temperature:-20℃ to +75℃ ; (5)Storage temperature:–55℃ to +125℃.

Features

HD64F3664FPV features: (1)Upward-compatible with H8/300 CPU on an object level ; (2)Sixteen 16-bit general registers ; (3)62 basic instructions; (4)Timer A (can be used as a time base for a clock) ; (5)Timer V (8-bit timer) ; (6)Timer W (16-bit timer) ; (7)Watchdog timer ; (8)SCI3 (Asynchronous or clocked synchronous serial communication interface) ; (9)I2C Bus Interface (conforms to the I2C bus interface format that is advocated by Philips Electronics) ; (10)10-bit A/D converter; (11)On-chip memory.

Diagrams

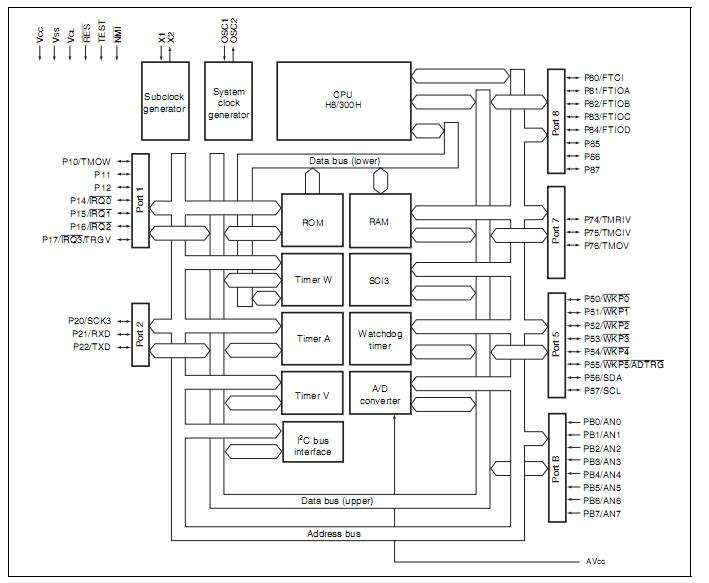

HD64F3664FPV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HD64F3664FPV
HD64F3664FPV


IC H8/3664 MCU FLASH 32K 64LQFP

Data Sheet

0-1: $7.13
1-10: $6.41
10-100: $5.27
100-250: $4.85
250-500: $4.42
500-1000: $3.85
1000-2500: $3.71
2500-5000: $3.56
5000-10000: $3.49
