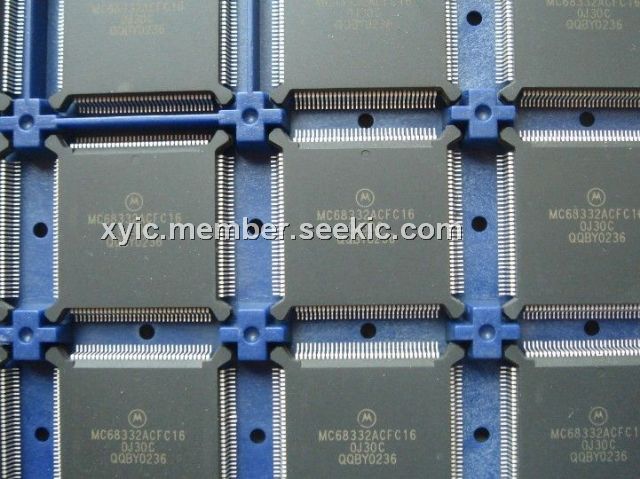

MC68332ACFC16

Product Summary

The MC68332ACFC16 is a highly-integrated 32-bit microcontroller, which combines high-performance data manipulation capabilities with powerful peripheral subsystems. The MCU is built up from standard modules that interface through a common intermodule bus (IMB). It incorporates a 32-bit CPU (CPU32), a system integration module (SIM), a time processor unit (TPU), a queued serial module (QSM), and a 2-Kbyte static RAM module with TPU emulation capability (TPURAM).

Parametrics

Specifications: (1)Core Processor: CPU32; (2)Core Size: 32-Bit ; (3)Speed: 16MHz; (4)Connectivity: EBI/EMI, SCI, SPI, UART/USART; (5)Peripherals: POR, PWM, WDT; (6)Number of I /O: 15; (7)Program Memory Type: ROMless; (8)RAM Size: 2K x 8; (9)Voltage - Supply (Vcc/Vdd): 4.5 V ~ 5.5 V; (10)Oscillator Type: Internal; (11)Operating Temperature: -40°C ~ 85°C; (12)Package / Case: 132-QFP; (13)Packaging: Tray.

Features

Features: (1)Central Processing Unit (CPU32): 32-Bit Architecture; Virtual Memory Implementation; Table Lookup and Interpolate Instruction; Improved Exception Handling for Controller Applications; High-Level Language Support; Background Debugging Mode; Fully Static Operation; (2)System Integration Module (SIM): External Bus Support; Programmable Chip-Select Outputs; System Protection Logic; Watchdog Timer, Clock Monitor, and Bus Monitor; Two 8-Bit Dual Function Input/Output Ports; One 7-Bit Dual Function Output Port; Phase-Locked Loop (PLL) Clock System; (3)Time Processor Unit (TPU): Dedicated Microengine Operating Independently of CPU32; 16 Independent, Programmable Channels and Pins; Any Channel can Perform any Time Function; Two Timer Count Registers with Programmable Prescalers; Selectable Channel Priority Levels; (4)Queued Serial Module (QSM): Enhanced Serial Communication Interface; Queued Serial Peripheral Interface; One 8-Bit Dual Function Port; (5)Static RAM Module with TPU Emulation Capability (TPURAM): 2-Kbytes of Static RAM; May be Used as Normal RAM or TPU Microcode Emulation RAM.

Diagrams
