Product Summary

The S1D13501F00A1 is one member of the S1D135031 series which designed as the LCD Controller IC that can display text and graphics on LCD panel. This device display controller functions include transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels and generating timing signals for the buffer memory, LCD panel.

Parametrics

Absolute maximum ratings of the S1D13503F00A can be summarized as:(1)supply voltage range:-0.3 to 7.0 V;(2)input voltage range:-0.3 to VDD+0.3 V;(3)power dissipation:300 mW;(4)operating temperature range:-20 to 75 ℃;(5)storage temperature range:-65 to 150 ℃;(6)soldering temperature (10 seconds):260 ℃.

Features

Features:(1)low power consumption—3.5 mA operating current (VDD=3.5V), 0.05 mA standby current;(2)package;(3)6800 and 8080 family microprocessor interfaces;(4)up to 256, 8 x 16 pixel characters in external character generator ROM;(5)up to 64, 8 x 16 pixel characters in external character generator RAM;(6)160, 5 x 7 pixel characters in internal mask-programmed character generator ROM;(7)up to 640 x 256 pixel LCD panel display resolution memory;(8)1/2-duty to 1/256-duty LCD drive;(9)smooth horizontal and vertical scrolling of all or part of the display;(10)programmable cursor control;(11)up to 640 x 256 pixel LCD panel display resolution;(12)three overlapping screens in graphics mode;(13)text, graphics and combined text/graphics display modes.

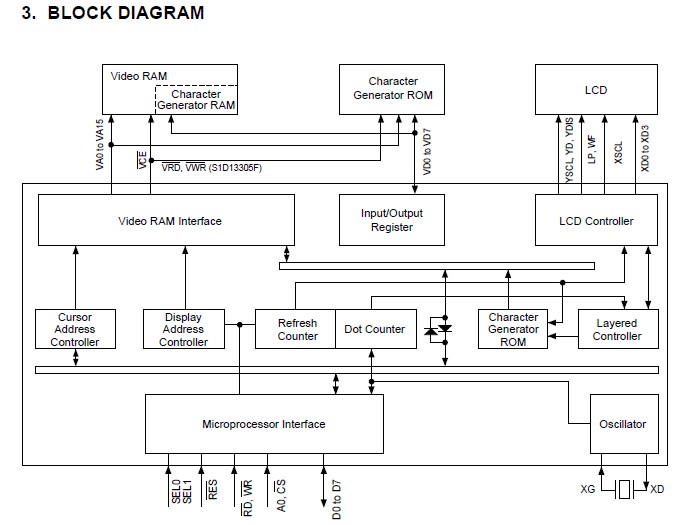

Diagrams
