Product Summary

The CXB1457R is a chipset using GVIF (Gigabit Video Interface) technology. The GVIF chipset enables high speed transmission of uncompressed digital video over a single twisted pair cable in motor vehicle applications. The CXB1457R is the transmitter, which is widely used in Navigation Systems, In-Dash Display, Automotive View Cameras and Rear Seat Entertainment.

Features

CXB1457R features: (1)Serial transmission of 24-bit color video; (2)Data bandwidth up to 1.2Gbps; (3)Low power consumption; (4)On-chip differential cable driver; (5)Cable length up to 20m; (6)On-chip PLL synthesizer; (7)CMOS logic interface; (8)On-chip FIFO circuit; (9)Single +3.3V power supply; (10)Operating shift clock frequency 7.6 to 42MHz; (11)Operating temperature range: -40 to +85℃; (12)Storage temperature range: -65 to +150℃.

Diagrams

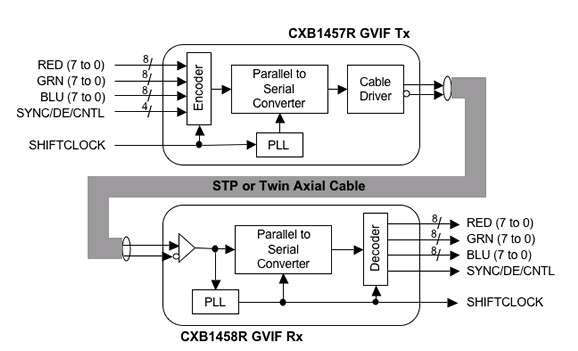

CXB1457R circuit diagram
