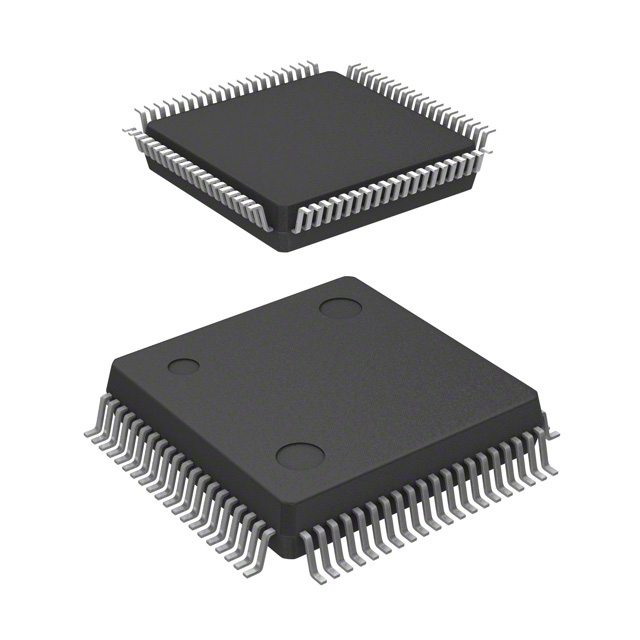

HD64F2134FA20

16-bit general register, microcomputer, 32-bit H8S/2000 CPU core, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~7.50

PartNumber:: HD64F2134FA20

Brand:: Hitachi Semiconductor - Renesas | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Steven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-23

From Other Seller

Part Number:HD64F2134FA20
US $7.00 - 7.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HD64F2134FA20 is one member of the HD64F2134 family which designed as the comprise high-performance microcomputers with a 32-bit H8S/2000 CPU core, and a set of on-chip supporting functions required for system configuration. This kind of CPU can execute basic instructions in one state, and is provided with sixteen internal 16-bit general registers with a 32-bit configuration, and a concise and optimized instruction set.

Parametrics

Absolute maximum ratings:(1)power supply voltage:-0.3 to +7.0 V;(2)input voltage (except ports 6 and 7):-0.3 to Vcc+0.3 V;(3)input voltage (CIN input not selected for port 6):-0.3 to Vcc+0.3 V;(4)input voltage (CIN input selected for port 6):lower voltage of -0.3 to Vcc+0.3 and AVCC+0.3 V;(5)input voltage (port 7):-0.3 to AVcc+0.3 V;(6)analog power supply voltage:-0.3 to +7.0 V;(7)analog input voltage:-0.3 to AVcc+0.3 V;(8)storage temperature:-55 to +125 °C;(9)operating temperature:regular specifications:-20 to +75 °C.

Features

Features:(1)upward-compatible with H8/300 and H8/300H CPUs- can execute H8/300 and H8/300H object programs;(2)general-register architecture-sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit registers);(3)sixty-five basic instructions such as 8/16/32-bit arithmetic and logic instructions and powerful bit-manipulation instructions;(4)power-down state:transition to power-down state by sleep instruction and CPU clock speed selection;(5)all frequently-used instructions execute in one or two states;(6)two CPU operating modes:normal mode and advanced mode.
