Product Summary

The AD587UQ is a monolithic voltage reference. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high stability thin-film resistors, the AD587JR provides outstanding performance at low cost.

Parametrics

AD587UQ absolute maximum ratings: (1)+VIN to Ground: 36 V; (2)Power Dissipation (25℃): 500 mW; (3)Storage Temperature: –65 to +150℃; (4)Lead Temperature (Soldering, 10 sec): 300℃; (5)Package Thermal Resistance, θJC: 22℃/W; θJA: 110℃/W.

Features

AD587UQ features: (1)Laser Trimmed to High Accuracy: 10.000 V ±5 mV (L and U Grades); (2)Trimmed Temperature Coefficient: 5 ppm/℃ Max (L and U Grades); (3)Noise Reduction Capability; (4)Low Quiescent Current: 4 mA Max; (5)Output Trim Capability; (6)MIL-STD-883 Compliant Versions Available.

Diagrams

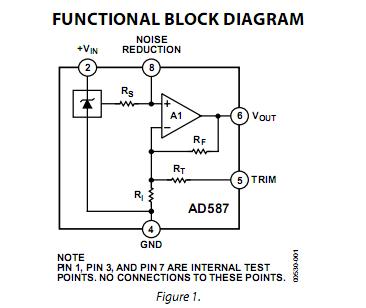

AD587UQ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD587UQ
AD587UQ

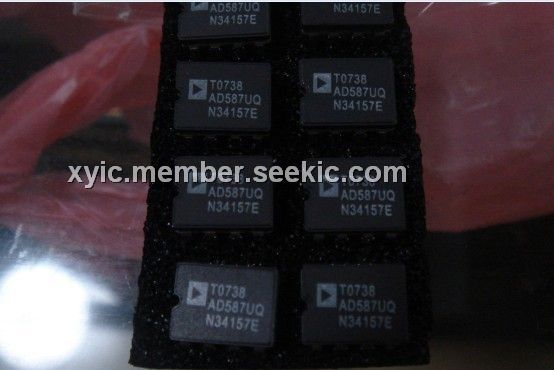

IC VREF SERIES PREC 10V 8-CERDIP

Data Sheet

0-1: $14.21
