Product Summary

The HD6413007F20V is a high-performance microcontroller that integrates system supporting functions together with an H8/300H CPU core. The HD6413007F20V CPU has a 32-bit internal architecture with sixteen 16-bit general registers, and a concise, optimized instruction set designed for speed. The HD6413007F20V can address a 16-Mbyte linear address space. The on-chip system supporting functions include RAM, a 16-bit integrated timer unit (ITU), a programmable timing pattern controller (TPC), a watchdog timer (WDT), a serial communication interface (SCI), an A/D converter, I/O ports, a direct memory access controller (DMAC), a refresh controller, and other facilities.

Parametrics

HD6413007F20V absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +7.0 V; (2)Input voltage (except port 7), VIN: –0.3 to VCC +0.3 V; (3)Input voltage (port 7), VIN: –0.3 to AVCC +0.3 V; (4)Reference voltage, VREF: –0.3 to AVCC +0.3 V; (5)Analog power supply voltage, AVCC: –0.3 to +7.0 V; (6)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (7)Operating temperature, Topr: Regular specifications: –20 to +75 ℃; (8)Storage temperature, Tstg: Wide-range specifications: –40 to +85 ℃; –55 to +125 ℃.

Features

HD6413007F20V features: (1)Five 16-bit timer channels, capable of processing up to 12 pulse outputs or 10 pulse inputs; (2)16-bit timer counter (channels 0 to 4); (3)Two multiplexed output compare/input capture pins (channels 0 to 4); (4)Operation can be synchronized (channels 0 to 4); (5)PWM mode available (channels 0 to 4); (6)Phase counting mode available (channel 2); (7)Buffering available (channels 3 and 4); (8)Reset-synchronized PWM mode available (channels 3 and 4); (9)Complementary PWM mode available (channels 3 and 4); (10)DMAC can be activated by compare match/input capture A interrupt(channels 0 to 3).

Diagrams

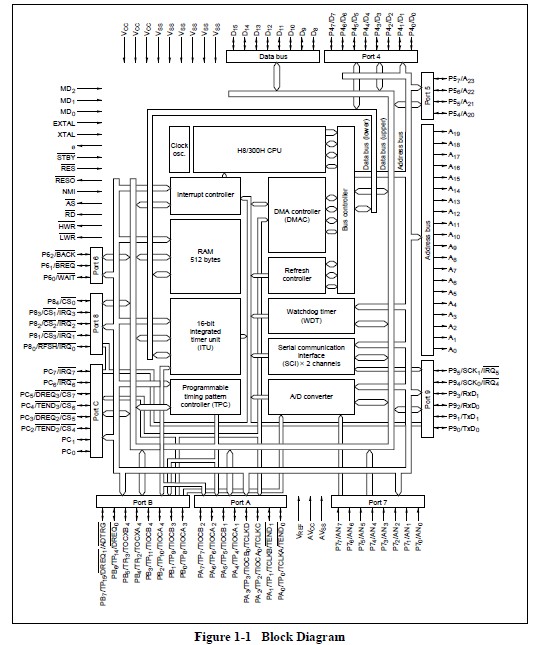

HD6413007F20V block diagram
