Product Summary

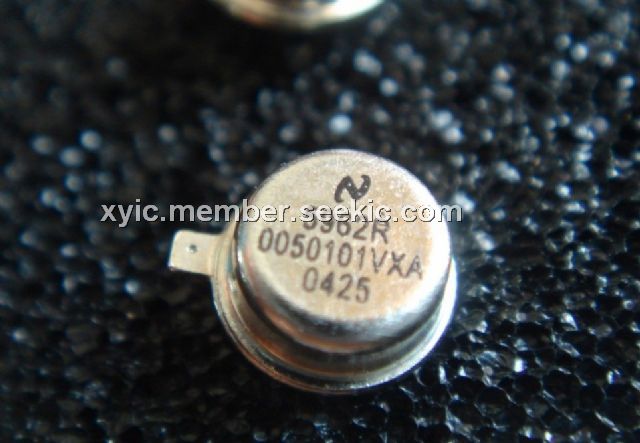

The 5962R0050101VXA is a precision 2.5V shunt regulator diode. The monolithic IC voltage reference operates as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the 5962R0050101VXA allows the reference voltage and temperature coefficient to be trimmed easily.

Parametrics

5962R0050101VXA absolute maximum ratings: (1)Reverse Current: 15 mA; (2)Forward Current: 10 mA; (3)Storage Temperature: -60 to +150℃; (4)Operating Temperature Range: -55 to +150℃.

Features

5962R0050101VXA features: (1)Low temperature coefficient; (2)Wide operating current of 400 μA to 10 mA; (3)0.2Ω dynamic impedance; (4)±1% initial tolerance available; (5)Guaranteed temperature stability; (6)Easily trimmed for minimum temperature drift; (7)Fast turn-on.

Diagrams

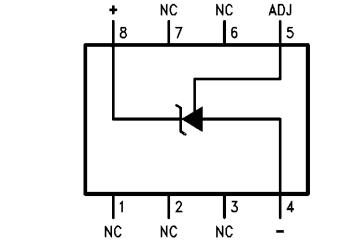

5962R0050101VXA pin configuraion
