Product Summary

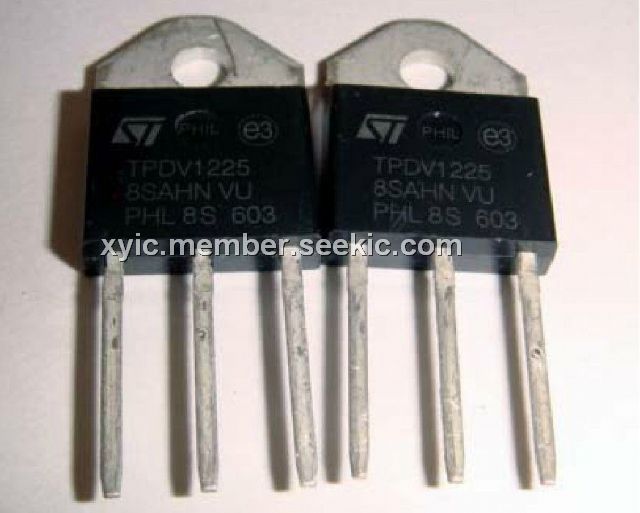

The TPDV1225 is a high performance passivated glass alternistor. Featuring very high commutation levels and high surge current capability, this family is well adapted to power control on inductive load.
Parametrics
TPDV1225 absolute maximum ratings: (1)RMS on-state current(360°conduction angle):25A; (2)Non repetitive surge peak on-state current(Tj initial = 25°C):390A; (3)I2t value:265A2s; (4)Critical rate of rise of on-state current:20A/us; (5)Storage and operating junction temperature range:-40 to +150℃.
Features
TPDV1225 features: (1)high commutation: > 88 A/ms (400Hz); (2)insulatingvoltage = 2500V(RMS)(UL RECOGNIZED: EB81734); (3)high voltage capability: VDRM = 1200 V.

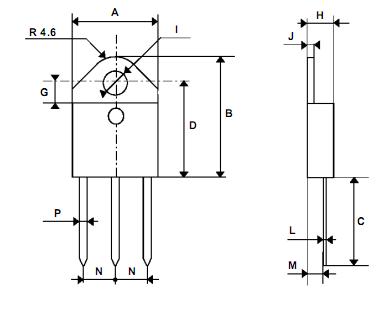

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TPDV1225 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TPDV1225RG |
STMicroelectronics |
Sidacs 25A High Volt Triac 1200V 150mA IGT |
Data Sheet |
|
|
