Product Summary

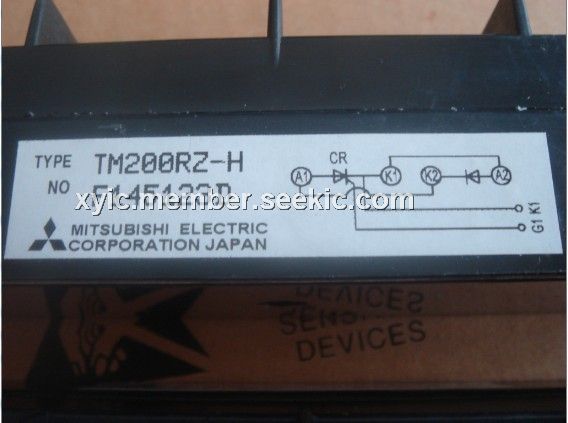

The TM200RZ-H is a 200A thyristor module. The applications of it are DC motor control, NC equipment, AC motor control, contactless switches, electric furnace temperature control, light dimmers.
Parametrics
TM200RZ-H absolute maximum ratings: (1)Repetitive peak reverse voltage:1600V; (2)Non-repetitive peak reverse voltage:1700V; (3)DC reverse voltage:1280V; (4)Repetitive peak off-state voltage:1600V; (5)Non-repetitive peak off-state voltage:1700V; (6)DC off-state voltage:1280V; (7)RMS current:310A; (8)Average current:200A; (9)Surge (non-repetitive) current:4000A; (10)Peak gate power dissipation:10W; (11)Average gate power dissipation:3W; (12)Peak gate forward voltage:10V; (13)Peak gate reverse voltage:5V; (14)Peak gate forward current:4A; (15)Junction temperature:-40 to 125℃; (16)Storage temperature:-40 to 125℃.
Features
TM200RZ-H features: (1)IT (AV) Average on-state current:200A; (2)IF (AV) Average forward current:200A; (3)VRRM Repetitive peak reverse voltage:400/800/1200/1600V; (4)VDRM Repetitive peak off-state voltage:400/800/1200/1600V; (5)MIX DOUBLE ARMS; (6)Insulated Type; (7)UL Recognized.
Diagrams
