Product Summary
The AD586TQ is a major advance in the state-of-the-art in a monolithic voltage reference. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high stability thin-film resistors, the AD586TQ provides outstanding performance at low cost. The AD586TQ offers much higher performance than most other 5 V references. Because the AD586TQ uses an industry standard pinout, many systems can be upgraded instantly with the AD586JRZ. The buried Zener approach to reference design provides lower noise and drift than bandgap voltage references. The AD586TQ offers a noise reduction pin which can be used to further reduce the noise level generated by the buried Zener.
Parametrics
AD586TQ absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Power Dissipation (25℃): 500 mW; (3)Storage Temperature: –65℃ to +150℃; (4)Lead Temp (Soldering, 10 sec): +300℃; (5)Package Thermal Resistance: qJC: 22℃/W, qJA: 110℃/W; (6)Output Protection: Output safe for indefinite short to ground or VIN.
Features
AD586TQ features: (1)Laser Trimmed to High Accuracy: 5.000 V 62.0 mV (M Grade); (2)Trimmed Temperature Coefficient: 2 ppm/℃ max, 0℃ to +70℃ (M Grade), 5 ppm/8C max, -40℃ to +85℃ (B & L Grades), 10 ppm/℃ max, -55℃ to +125℃ (T Grade); (3)Low Noise, 100 nV/√Hz; (4)Noise Reduction Capability; (5)Output Trim Capability; (6)MIL-STD-883 Compliant Versions Available; (7)Industrial Temperature Range SOICs Available; (8)Output Capable of Sourcing or Sinking 10 mA.

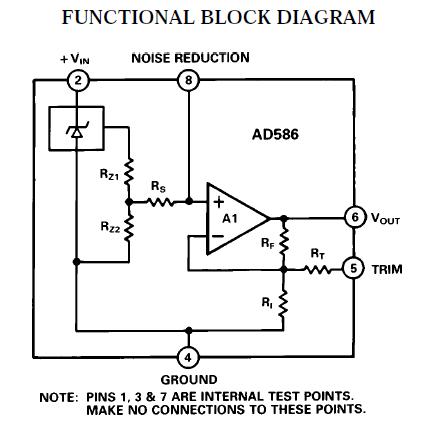

Diagrams
